Monel Alloy Material
Overview of Monel Alloy
Monel alloy is a group of high-performance nickel-copper alloys known for excellent resistance to seawater, salt, alkali solutions, and many corrosive environments. Compared with stainless steel and most nickel alloys, Monel provides outstanding durability in marine, chemical, and oil & gas applications where resistance to chloride corrosion and stress corrosion cracking is critical.
Monel alloys are widely used in the production of Monel pipes, Monel tubing, valves, heat exchanger tubes, and marine components, especially in offshore engineering, desalination plants, hydrocarbon processing, and chemical equipment.
Because of its balanced mechanical strength and corrosion resistance, Monel is considered one of the most reliable materials for seawater and non-oxidizing chemical environments.

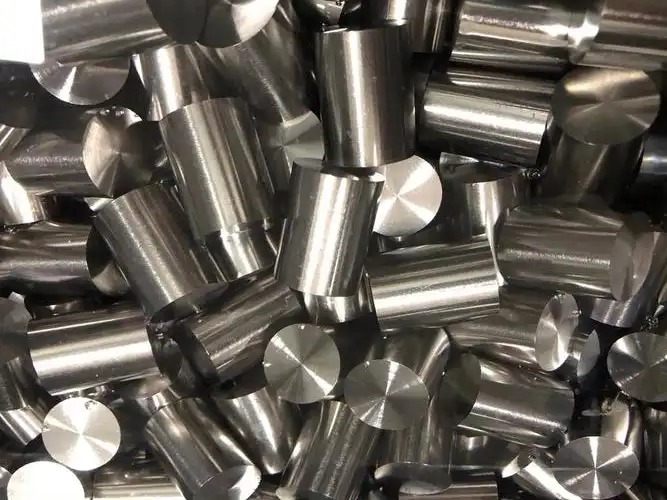

Monel alloy
What Is Monel Alloy?
Monel is a solid-solution alloy primarily composed of:
Nickel (≈ 60–70%)
Copper (≈ 20–35%)
Small amounts of iron, manganese, silicon, and carbon
This composition gives Monel excellent corrosion resistance and mechanical stability over a wide temperature range. Unlike many stainless steels, Monel does not rely on chromium for corrosion resistance, but on the nickel-copper matrix, which performs very well in seawater, brine, and reducing acids.
Monel alloys are stronger than pure nickel and more resistant to corrosion than most copper alloys, making them suitable for critical industrial piping systems.
Common Grades of Monel Used in Pipes and Tubes
Monel 400
The most widely used Monel grade.
Features:
Excellent resistance to seawater and brine
Good resistance to hydrofluoric and sulfuric acid
High strength and toughness
Excellent weldability
Good performance at low and moderate temperatures
Applications:
Marine piping systems
Chemical processing equipment
Oil refinery piping
Heat exchangers
Pump and valve components
Monel 400 is often supplied as:
ASTM B165 pipe
ASTM B725 welded pipe
ASTM B730 tubing
Monel 400 maintains corrosion resistance even in fast-flowing seawater and chloride environments, where many stainless steels may fail.

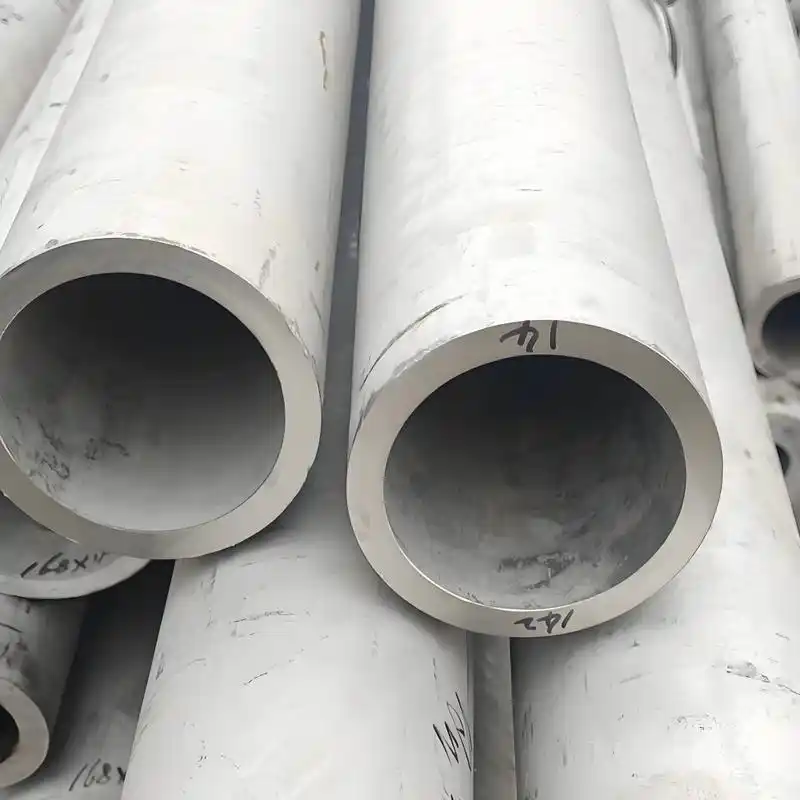

Monel alloy pipes
Monel K-500
A precipitation-hardened version of Monel.
Features:
Higher strength than Monel 400
Good corrosion resistance
Excellent fatigue resistance
Suitable for high-stress components
Applications:
Offshore shafts
Marine fasteners
Oil & gas equipment
Pump and valve parts
K-500 contains aluminum and titanium to increase strength compared with Monel 400.
Key Properties of Monel Alloy
Monel alloys are widely used because of:
Excellent resistance to seawater corrosion
Good resistance to alkalis and non-oxidizing acids
High mechanical strength
Good toughness at low temperature
Resistance to stress corrosion cracking
Good weldability and fabrication
Monel performs especially well in:
Marine environments
Chloride solutions
Hydrofluoric acid
Brine systems
High-flow seawater
These properties make Monel a preferred material for offshore and desalination piping systems.
Monel vs Stainless Steel
| Property | Monel | Stainless Steel |
| Seawater resistance | Excellent | Moderate |
| Chloride resistance | Excellent | Limited |
| Strength | High | Medium |
| Cost | Higher | Lower |
| Typical use | Marine / offshore | General industry |
Monel is preferred when stainless steel cannot withstand seawater or chloride corrosion.
Monel vs Hastelloy
| Property | Monel | Hastelloy |
| Alloy type | Nickel-Copper | Nickel-Cr-Mo |
| Main advantage | Marine corrosion resistance | Strong acid resistance |
| Seawater resistance | Excellent | Excellent |
| Strong acid resistance | Moderate | Excellent |
| Cost | Medium-High | Very High |
Hastelloy is used for aggressive chemical environments, while Monel is preferred for seawater and marine systems.
Monel vs Inconel
| Property | Monel | Inconel |
| Main use | Corrosion resistance | High temperature |
| Heat resistance | Medium | Very high |
| Seawater resistance | Excellent | Good |
| Typical industry | Marine / oil & gas | Aerospace / furnace |
Inconel is selected for high-temperature strength, while Monel is chosen for corrosion resistance in water and salt environments.
Monel vs Incoloy
| Property | Monel | Incoloy |
| Seawater resistance | Excellent | Good |
| High temperature | Medium | High |
| Cost | Medium-High | Medium |
| Typical use | Marine / chemical | Heat exchanger / power plant |
Incoloy is often used for heat-resistant equipment, while Monel is better for corrosion in seawater.
Forms of Monel Products for Piping Systems
Monel alloys can be supplied as:
Monel seamless pipe
Monel welded pipe
Monel tubing
Monel heat exchanger tube
Monel fittings and flanges
Common standards:
ASTM B165
ASTM B725
ASTM B730
ASTM B366
These standards are widely used in oil & gas, offshore, and chemical projects.
Applications of Monel Pipes
Monel pipes are widely used in industries requiring corrosion resistance in water or chemical environments.
Marine & Offshore
Seawater piping
Shipbuilding
Offshore platforms
Oil & Gas
Refinery piping
Sour service
Pump and valve systems
Chemical Processing
Acid handling
Alkali systems
Heat exchangers
Water Treatment & Desalination
Brine piping
Reverse osmosis systems
Power Generation
Condensers
Cooling water lines
Aerospace & Defense
High-reliability components
Why Choose Ganyeah Group for Monel Pipes
Experience in special alloy piping
Supply of Monel 400 / K500
Seamless and welded pipe available
ASTM / ASME compliant materials
Stable quality for international projects
Custom sizes and specifications
We supply Monel pipes, Monel tubing, and nickel alloy piping materials for offshore, chemical, and industrial applications worldwide.
Conclusion
Monel alloys are among the most reliable materials for manufacturing corrosion-resistant pipes and tubing, especially in marine, offshore, oil & gas, and chemical environments. Compared with stainless steel and many nickel alloys, Monel provides excellent resistance to seawater, chlorides, and non-oxidizing acids, making it an ideal material for critical piping systems.
Ganyeah Group supplies a full range of Monel pipes, Monel tubing, and nickel alloy piping materials in accordance with international standards, supporting industrial projects worldwide.
