Inconel Material: Properties, Grades & Applications in Piping Systems

What Is Inconel?

Inconel is a family of nickel-chromium superalloys renowned for their exceptional resistance to high temperatures, oxidation, and corrosion. These alloys maintain excellent mechanical properties even under extreme pressure and thermal stress, making them ideal for critical piping systems in the oil & gas, chemical, aerospace, and marine industries.

As a high-performance nickel alloy, Inconel pipes deliver long-term reliability in environments where stainless steel or carbon steel cannot perform, especially in oxidizing, carburizing, chloride-rich, or high-temperature applications.

Key Features of Inconel Alloy Pipes

Superior High-Temperature Strength

Inconel maintains its structural integrity at temperatures above 900–1100°C, far exceeding the performance of conventional steels.

Excellent Resistance to Oxidation & Creep

The alloy forms a stable oxide layer, preventing scaling and creep deformation during long-term exposure to heat.

Exceptional Corrosion Resistance

Inconel pipes offer outstanding resistance to:

Chloride pitting & crevice corrosion

Stress corrosion cracking (SCC)

Acidic media (sulfuric, phosphoric, nitric, hydrochloric acids)

Seawater and marine environments

Oxidizing and carburizing atmospheres

Stability Under High Pressure & High Stress

Inconel alloys maintain high tensile strength and fatigue resistance, ensuring long service life in pressure pipes and heat exchanger tubes.

Suitable for Extreme Environments

Inconel is one of the few metallic materials that can withstand:

High-temperature furnaces

Offshore oil extraction

Chemical reactors

High-pressure steam

Aerospace exhaust systems

Common Inconel Grades Used in Piping

Inconel 600 Pipes

Excellent high-temperature oxidation resistance

Common in furnace tubes, heaters, and heat exchangers

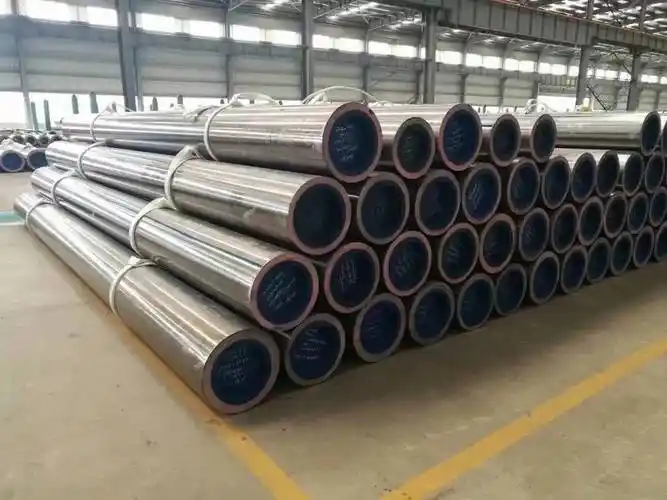

Inconel 625 Pipes

Most widely used piping grade

Remarkable corrosion resistance in seawater and chloride environments

Suitable for offshore platforms, seawater systems, chemical processing

Inconel 718 Pipes

High strength, can be heat-treated

Used in aerospace piping, turbine systems

Inconel 800 / 800H / 800HT Pipes

Outstanding creep and stress rupture resistance

Ideal for high-temperature petrochemical piping

Chemical Composition & Alloying Elements

Typical Inconel grades contain:

Nickel (up to 72%)

Chromium (14–23%)

Molybdenum

Niobium

Iron

These alloying elements enhance corrosion resistance, mechanical strength, and stability at elevated temperatures.

Applications of Inconel Pipes in Piping Systems

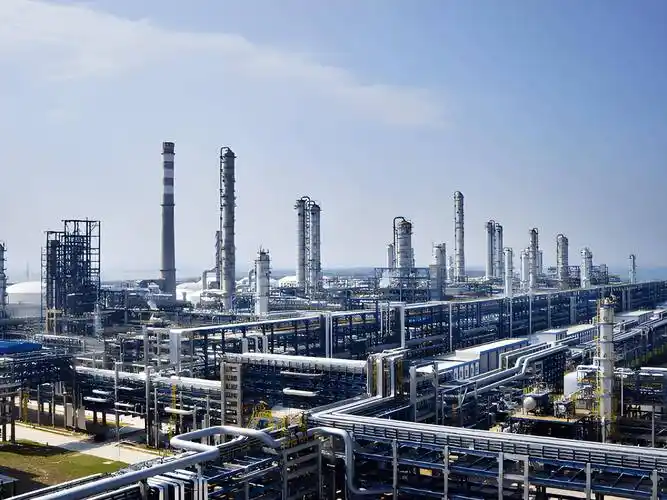

Oil & Gas Industry

Inconel pipes are widely used in:

Downhole and offshore flowlines

Sour gas environments (H₂S, CO₂)

High-pressure wellhead components

Refinery heaters and reformer tubes

Especially Inconel 625 is preferred for offshore and subsea pipelines due to its superior chloride resistance.

Chemical & Petrochemical Industry

Chemical plants often operate with highly corrosive media:

Concentrated acids

Chlorides

Alkaline solutions

High-temperature vapors

Inconel 600, 625, and 800H are used in:

Chemical reactors

Heat exchanger tubes

Acid transport piping

Urea production equipment

Power Generation & Heat Exchangers

Inconel’s remarkable high-temperature strength makes it suitable for:

Superheater & reheater tubes

Heat exchangers in nuclear power plants

Steam generators

Gas turbine piping

Grades like Inconel 617 and 800HT offer excellent creep resistance in high-temperature boilers.

Marine & Desalination Industry

Due to exceptional resistance to seawater corrosion and bio-fouling, Inconel pipes are used in:

Seawater intake lines

Desalination plants (RO, MSF systems)

Marine engine exhaust lines

Offshore platforms

Aerospace & Defense

Inconel materials withstand extreme temperatures and high-velocity gases, commonly used in:

Aircraft hydraulic and fuel piping

Rocket engine lines

High-temperature exhaust systems

Why Choose Inconel Pipes for Critical Applications?

Long service life reduces maintenance cost

Reliable under extreme thermal cycling

Superior resistance to stress corrosion cracking

Ideal for both high-temperature and high-corrosion environments

Meets ASTM, ASME, and international standards

Inconel alloy pipes are among the most reliable materials for demanding piping applications. Their ability to resist heat, corrosion, pressure, and aggressive chemicals makes them indispensable in industries such as oil & gas, chemical processing, power generation, marine engineering, and aerospace.

If your goal is to supply world-class high-performance pipe materials, Inconel is a premium solution that ensures safety, durability, and long-term value.
